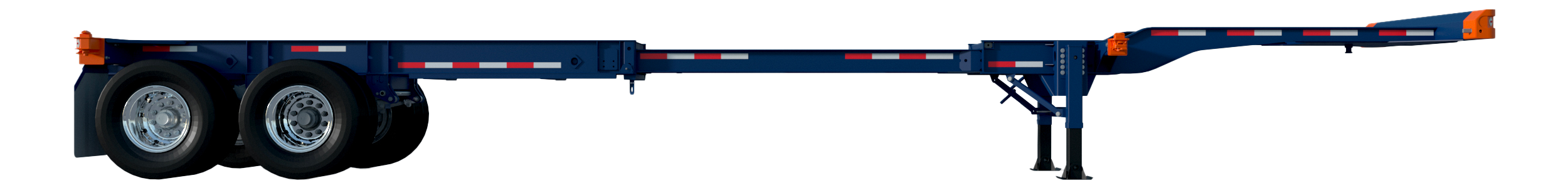

20-40 Tandem Axle Chassis
Your City Workhorse for Daily Hauls
Designed for 90% of standard intermodal tasks, this unit efficiently manages both 20’ and 40’ containers. It’s the reliable solution your city runs have been waiting for.
Pneumatic Retractable Frame
Landing Gear
PSI Tire Inflation System
Gooseneck Frame
OEM Radial Tubeless Tires
Piloted Stud Wheel
Solar Powered GPS
Aluminum 22.5” x 8.25 hub piloted rims
Features
Precision Engineering: 20-40 Tandem Axle Details
The Trend 20-40 Tandem Axle is built for reliable daily use, engineered with durable high-strength steel, a smart slider system, and bolt-on components that simplify maintenance and customization. This city combo chassis offers flexibility in a more compact design—ideal for container yards and short-haul moves. With reinforced structural integrity and fully compliant features, it’s ready to perform where it matters most.
High Strength 7-Gauge Cross Members
LED Lighting Package
Bolt-On ICC Bumper
Specifications
Built with Purpose. Designed for Performance.
Measurements
| Overall Length | 46′ 2-3/8″ Extended 40′ 11-7/8″ Extended 30′ 6-5/8″ Retracted |
| Overall Width | 96″ |
| Fifth Wheel Height | 48″ ± 1″ |
| Rear Deck Height | 48″ ± 1″ |
| Tare Weight | 7,600 LBS ± 2% |
| GVWR | 52,200 LBS for 20′ / 72,600 LBS for 40′ |
Structure
| Gooseneck Material | Hot Rolled ASTM A572 GR50 / SM490YA Sheets |
| Main Beam Material | Hot Rolled 12” – 19 lbs/ft – ASTM A992 GR50 |
| Slider System | Hot Rolled 8” – 18 lbs/ft – ASTM A992 GR50 |
| Gooseneck Beam | 5-1/4” high x 4” wide fabricated I beam |
| Front Bolster | ¼” thick 8” wide x 10” high with taper for container gathering |
| Middle Bolster | 5/16” thick 5” wide x 5” high with retractable twist locks |
| Rear Bolster | ¼” thick C channel with 5/16” top plate and non-retractable twist locks |
| Slider Locks | 24/24 spring brake actuators via 3rd glad hand |
| Rear Bumper | 4” x 4” bolt-on ICC rear bumper |
Functional Accessories
| Kingpin | JOST 2” AAR approved welded type |
| Landing Gear | JOST A440 Magnum – 17” travel, 2-speed with T foot |
Rims & Tires
| Rims | 8.25 x 22.5 white powder-coated steel. Option: Alloy rims |
| Tires | Westlake CR915 11R 22.5 14 PR tires |
Chassis Coating System
| Primer | 2 mils zinc-enriched primer from Sherwin-Williams |
| Top Coat | 2 mils PU top coat in color of choice from Sherwin-Williams |
Brake System
| ABS System | 2S/1M ABS |
| Brake Actuators | Haldex 30/30 SB actuators |
| Auto Slacks | Haldex auto slacks |
Running Gears
| Axles | SAF round axles, 22,500 lbs capacity, 71.5” track with 16.5 x 7” Q brakes |
| Hubs and Drum | 10-stud hub piloted with outboard cast steel drums |
| Suspension | Hutch 9700 series, 49″ spacing, 354 high-arch springs |
Electrical System
| Harnesses | Phillips 12-volt modular harness |
| Lights | Phillips Permalite LED marker lamps and 4″ anti-theft stop/turn tail lamps |
See How Trend’s 20-40 Tandem Axle Can Advance Your Fleet Efficiency
With quick turnaround and expert support guaranteed.
FAQs
Frequently Asked Questions About The 20-40 Tandem Axle
What container sizes does this chassis support?
It’s designed to carry one loaded 20’ or one loaded 40’ ISO container, making it ideal for city operations and shorter hauls.
Can this chassis handle urban or tight-space logistics?
Yes, its retractable length and tandem axle design are optimized for maneuverability in tight spaces and urban environments.
Is the chassis compatible with automatic tire inflation systems?
Yes, it includes a PSI – ATIS system that maintains proper tire pressure and enhances operational efficiency.
Does the unit allow for future upgrades or part replacements?
Absolutely—bolt-on twist locks, landing gear brackets, and bumpers allow for easier maintenance and customization.
What kind of suspension system is included?
It features Hutch 9700 series tandem suspension with high-arch springs for durability and a smooth ride.
Is the chassis compliant with U.S. regulations?
Yes, the chassis meets or exceeds all TOFC, AAR, DOT, FMVSS, ISO, SAE, and TTMA standards.
Testimonial
“Before Trend, we treated equipment like a sunk cost and kept extra chassis around just to stay flexible. Now we’re running leaner and getting more out of less. The dual-size chassis cut down mismatches, we’ve cleared out yard clutter, and we’re not wasting money on empty moves. It just works better—and costs less.“
Scott Mullins
World Logistics USA, Safety & Operations Manager
ROI Calculator
See How Smarter Fleet Utilization Delivers All-In Cost Savings
Efficiency starts with the right chassis. Trend offers cutting-edge equipment designed to maximize uptime and reduce costs. Estimate the potential business benefits with our calculator.
Increased Productivity
Eliminate chassis swaps and repositioning to move more loads and save time.
Smaller Fleet, Higher Utilization
Eliminate 20’ chassis and get more from each asset.
Decrease Ground Space
Retracted 20’/40’ chassis take up to 25% less space, which is critical in crowded terminals.
